1. Directly integrated with 10M TCP/IP communication, offering excellent transmission performance. 2. Equipped with a large - capacity Flash memory, ensuring that data remains intact for 10 years even after a power outage. 3. All input interfaces are protected by optocouplers, making the system more stable. 4. The hardware comes with a built - in Web server, enabling management and real - time monitoring without the need to install additional software. 5. Each door has up to 8 sets of opening times, and different authentication methods can be selected for each set. 6. Multiple door - opening authentication methods are available: card, password, card + password, double - card, free passage, timed door opening and closing, and timed alarm. 7. Supports remote operation of door opening and closing, activation and deactivation of fire alarms, and alarm triggering. 8. Supports door locking via software or Web, anti - tailgating across multiple controllers in a specific area, and door interlocking. 9. Supports alarm output for multiple events, such as invalid cards, invalid time periods, door alarms, and door - open overtime. 10. All Weigand interfaces are compatible with the 26, 34, and 37 protocols and are protected by optocouplers. 11. Data is actively sent, and the transmission is not limited by the number of controllers. 12. Allows for the individual setting of the validity period for each card. 13. All access control devices support mixed installation. 14. When used in conjunction with software, it supports attendance management and real - time online patrol functions. 15. Supports multi - user and multi - device real - time management and monitoring. 16. By installing a network camera and using it with a multi - functional electronic map, real - time network monitoring and video capture can be achieved.
Performance Parameters
1. Card capacity: 30,000 cards. 2. Record storage: 50,000 records. 3. Alarm capacity: 60,000 alarms. 4. Communication method: TCP/IP. 5. Communication distance: Software management is not limited by distance. 6. Card readers: Wiegand protocol.
Door - Opening Methods
Single - card, password, card + password, double - card, remote operation via software, free passage, button - triggered, timed
Standard Interfaces

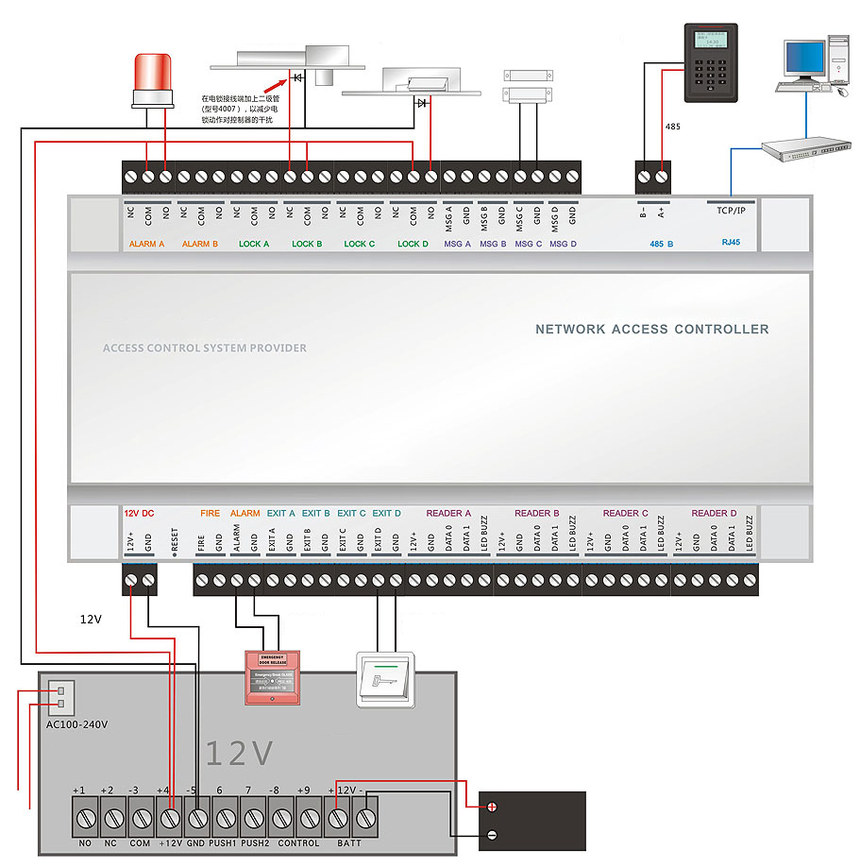

1. Card readers: 4. 2. Alarm output: 1. 3. Alarm input: 1. 4. Fire alarm output: 1. 5. Fire alarm input: 1. 6. Exit buttons: 4. 7. Door magnetic switch input: 4. 8. Electric lock output: 4. 9. TCP/IP communication: 1.
Basic Parameters
1. Mainboard size: 210×125×22mm. 2. Mainboard color: Dark blue (standard version). 3. Mainboard weight: Approximately 300 grams. 4. Shell size: 214×110×37mm. 5. Chassis size: 320×270×72mm; 350×280×72mm (Large chassis, can accommodate a battery). 6. Chassis color: Black. 7. Chassis weight: Approximately 1400 grams (2000 grams for the large chassis). 8. Operating temperature: < 60°C. 9. Environmental humidity: 10% - 95% R.H. 10. Operating voltage: DC 12V. 11. Operating current: < 80mA. 12. Rated power: ≤ 5W. 13. Power - outage protection: 10 years.
Application Areas
Government agencies, scientific research institutions, factories and mines; intelligent buildings, office towers, commercial offices; smart residential communities, high - end villas, rental properties; telecommunication machine rooms, banking and financial institutions, vaults; military facilities, prisons; subway transportation, airports, railway stations; gate control systems, parking lots; educational institutions, hospitals, hotels
