Swing Gate W13

: ~~No price~~

Functional
Technical

Powerful and Stable Control Core

It adopts an advanced non-destructive movement structure and is equipped with high - quality DC brushless motors, enabling precise control, stable operation, and an extremely long service life. The average trouble - free operation cycle exceeds 5 million times.
It supports advanced infrared anti - pinch technology to fully safeguard the safety of pedestrians.
All electrical modules use a safe voltage below 24V to prevent pedestrians from getting electric shocks and injuries.
In the event of a power failure, the system will automatically unlock the door flap and can be manually pushed to an open state for the convenient evacuation of people.
It can sensitively detect illegal intrusion behaviors such as reverse passage and tailgating, and issue warnings in the form of sound and light.

Easy Maintenance and Installation

Only two two - core connection cables are used, which simplifies wiring to the greatest extent and eases on - site installation problems.
It has a fault self - check function. When an abnormality occurs, it can give an alarm prompt, facilitating users' maintenance and use.
The waterproof level is as high as IP54, which maximally guarantees the waterproof performance of outdoor turnstiles.

Other Functional Features

The internally integrated voice chip can realize simple voice prompts and vividly and effectively guide pedestrians to pass.
It supports displaying the configuration information of the channel control board through the display screen. Through the keys, parameters such as the working mode (normally open, normally closed), control mode, and opening time can be configured. It features full - digital adjustment for convenient and simple adjustment and control.
It has multiple serial ports to meet the simultaneous access of multiple card reader devices. When connecting through a serial port, a controller needs to be purchased.

Functional parameters	Description
Number of infrared detection pairs	4 pairs of infrared light curtains (installed above the turnstile)
Passage frequency	20 - 30 people/minute
Fire linkage	The swing arm is automatically unlocked in case of power failure
Anti-pinch detection	Infrared anti-pinch
Reverse detection	Reverse intrusion detection
Alarm mode	Sound and light alarm
Indicator light color	Green ↑ for passage indication, × for closed indication
Swing arm light color	Red, green, blue (standard equipment without lights)
Side panel light color	Blue, green (standard equipment without lights)
Interface parameters	RS232 standard, distance ≤ 1200 meters
Performance parameters	Description
Motor	DC brushless motor
Case material	National standard thickness, upper cover standard thickness 1.5mm, body standard thickness 1.2mm, 304 stainless steel
Swing arm material	10mm acrylic/stainless steel tube
Partition material	Tempered glass
Average trouble-free service life	≥ 5 million times
Operating voltage	220V input; 24V output
Power	60W
Weight	60kg (single movement)

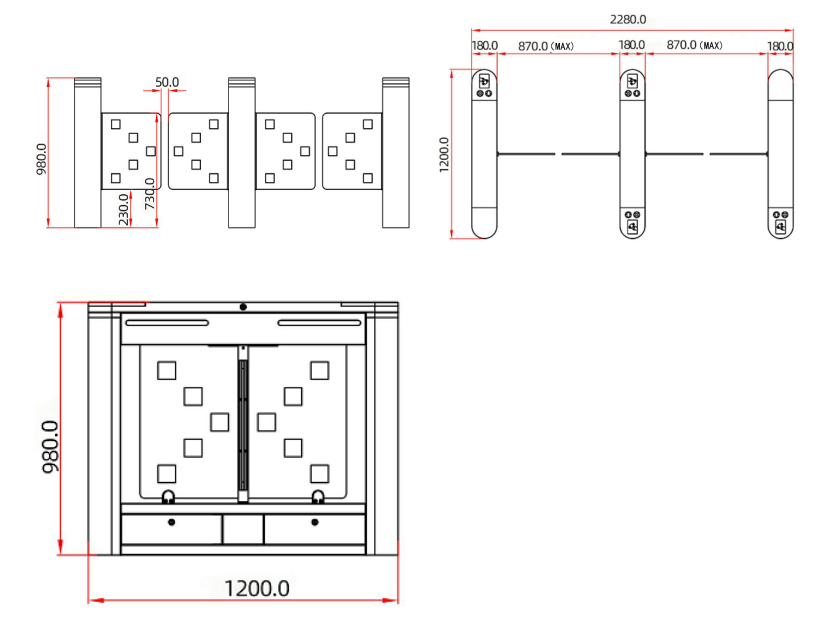

Size (length * width * height)	1200mm * 180mm * 980mm
Voice function	Built-in speaker or buzzer
Channel width	550mm - 870mm
Closing accuracy	≤ 1 degree
Working environment	-20℃ - 60℃; working humidity: 5% - 80%
Protection level	IP54
